High Precision Molds and High Precision Machining

MENU

Product Examples

  • High precision mold examples
  • High precision machining example
Mold types Injection molding molds, insert molding molds
Prototype mold lead-time Minimum 2 days, up to 10,000 shots
Mass production mold lead-time Minimum 5 days
Molded product accuracy 5μ *Actual achieved value
Research and development products 30t to 100t (consultation available for larger sizes)
3D data formats IGES, PARASOLID, STEP, STL, and more
Mold trial We can handle mold trial and provide temporally resin machining
Research and development products We can conclude NDAs, and have a proven track record of maintenance of confidentiality and production of research and development products
*Handling of research and development products
Facilities We possess a variety of cutting-edge processing facilities including CNC milling, NC lathes, EDM, grinders, and more
*List of equipment Read More

Automobile

Semiconductors / Diodes

Medical

Industrial Machinery

Processing technologies
  • ± 0.5μ
    Processing accuracy
  • Ra0.005μ
    Mirror finish CNC milling
  • Φ 0.01mm
    Micro-diameter boring
  • Wire diameter Φ 0.02
    Thin wire processing
  • Φ 0.02mm
    Micro-needle tip diameter
  • 0.1mm
    Narrow groove, thin-walled processing
No. of lots

Chimera specialist lots
90% of orders are for 1 to 10 pieces

1 Piece

Cost merit lots
Decreased cost of low volume mass production through automated processing line

10 Pieces

We can also handle orders for 100 or more pieces,
contact us for a consultation.

100 Pieces
Processed product accuracy ± 0.5μ *Actual achieved value
Product sizes Approximately 0.5mm to 300mm
Lead-time Minimum 2 days (normal lead-time is 10 days)
Research and development products We can conclude NDAs, and have a proven track record of maintenance of confidentiality and production of research and development products
*Handling of research and development products
Facilities We possess a variety of cutting-edge processing equipment including CNC milling, NC lathes, EDM, grinders, and more
*List of equipment Read More
  • WEDM
    10 units
  • EDM
    12 units
  • Precision small-hole EDM
    2 units
  • Profile grinders
    7 units
  • Surface grinders
    21 units
  • Forming grinders
    7 units
  • Cylindrical grinders
    1 unit
  • Lathes
    1 unit
  • Horizontal CNC milling / Vertical CNC milling
    1 unit / 16units
  • 5 axis CNC milling
    1 unit
  • Milling
    7 units
  • CMM
    5 units
Materials Iron, stainless steel, aluminum, copper, brass, resin, nickel, Inconel, Hastelloy, titanium
Heat Treatment Hardening, tempering, sub-zero/super sub-zero treatment, solution treatment, solidification treatment
precipitation hardening, annealing, normalizing, thermal refining, carburizing quenching, induction hardening
Surface Treatment Various plating, various nitriding, TIN, TICN, TiALN, DLC, alumite treatment, blackening

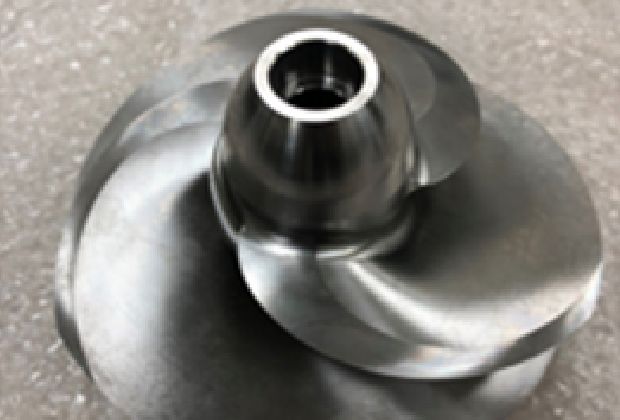

Product Name Inducer
Industry Milling
Size Φ 150x100
Precision ± 0.02

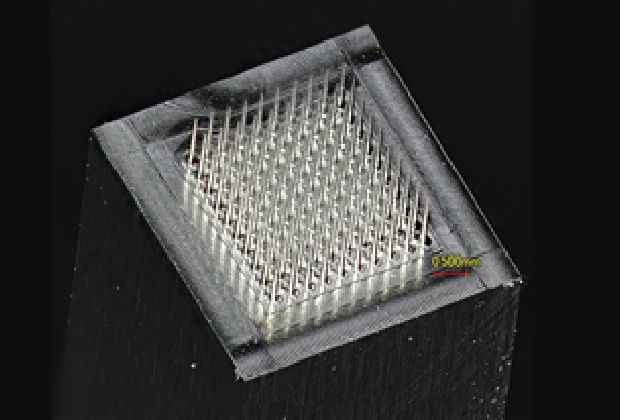

Product Name Micro-needle
Industry Milling
Size Φ 0.1x0.8 100
Precision ± 0.01

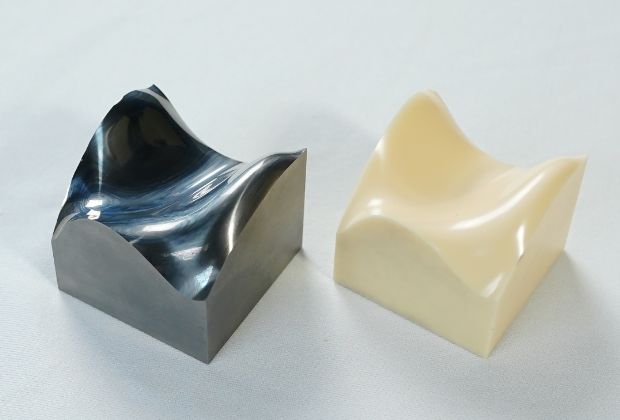

Product Name Difficult-to-machining material free-form surfaces
Industry Milling
Size 30x30x30
Precision ± 0.002

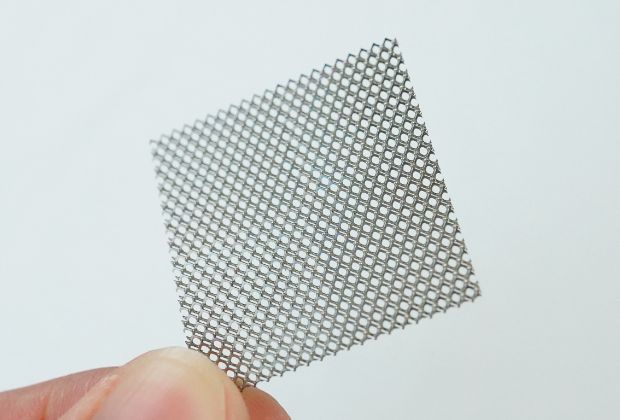

Product Name 多重六角格子網
Industry Milling
Size 30x30x5
Precision ± 0.01

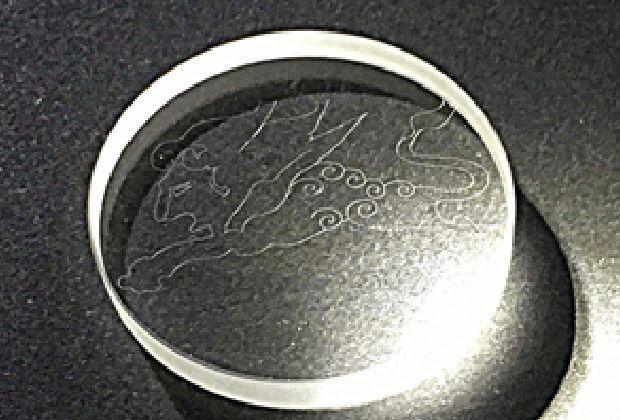

Product Name Quartz processing
Industry Milling
Size Φ 20x5
Precision ± 0.01

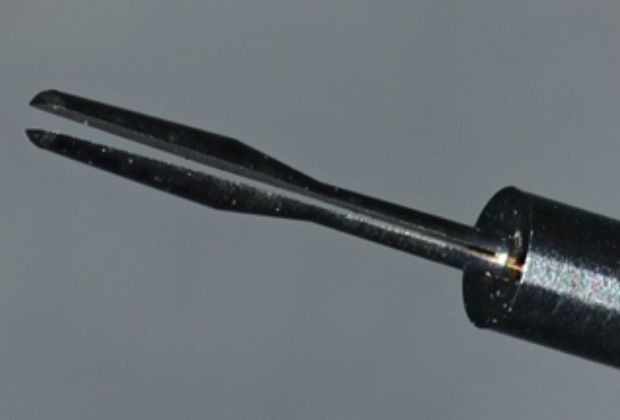

Product Name Micro forceps
Industry Lathe / EDM / Polishing
Size Φ 0.37x4.65
Precision ± 0.002

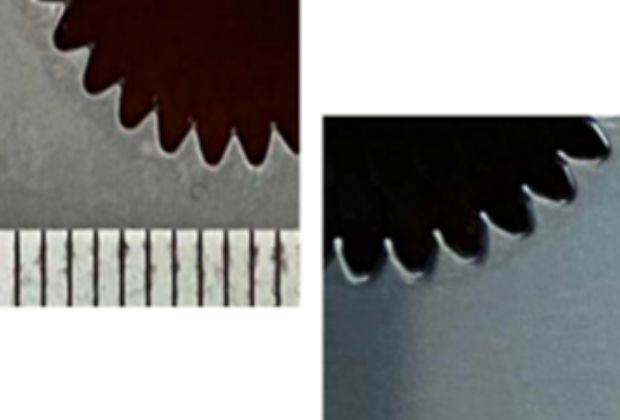

Product Name Precision gear
Industry WEDM
Size 5x5x1
Precision ± 0.001

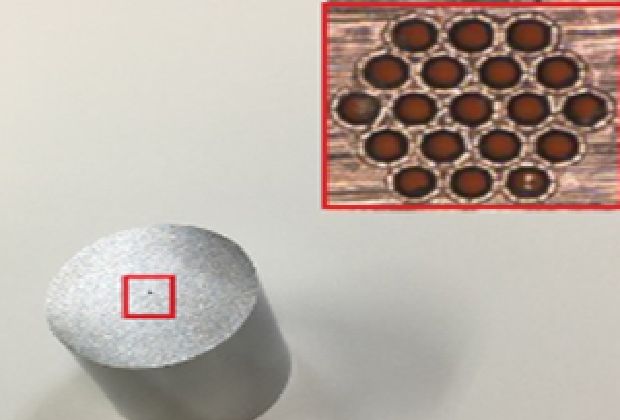

Product Name Ultrafine holes
Industry Milling
Size Φ 0.05x0.1
Precision ± 0.005

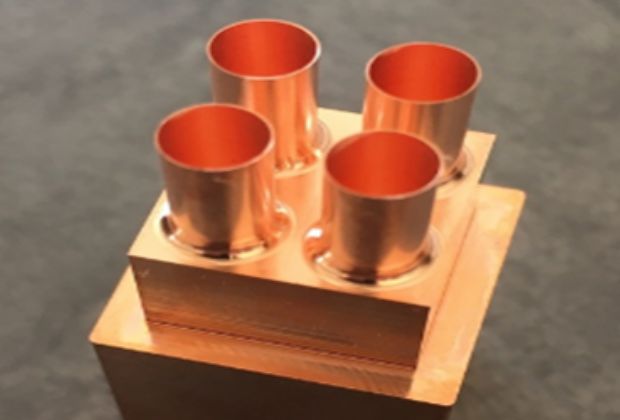

Product Name Copper thin-walled tubes
Industry Milling
Size 0.05x20
Precision ± 0.003

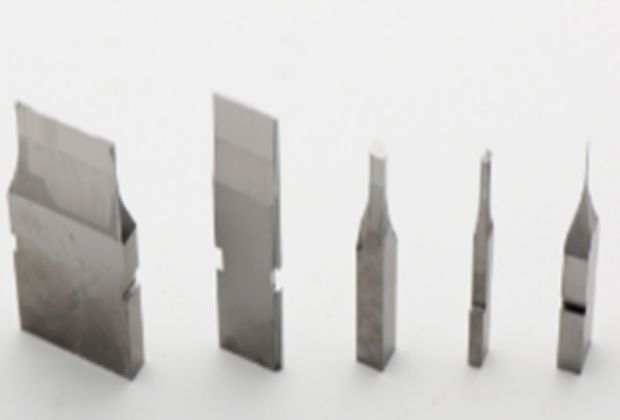

Product Name Press mold parts
Industry Profile grinding
Size 10x30x50
Precision ± 0.001
Product Name Die casting parts
Industry Milling / EDM
Size 100x150x150
Precision ± 0.03

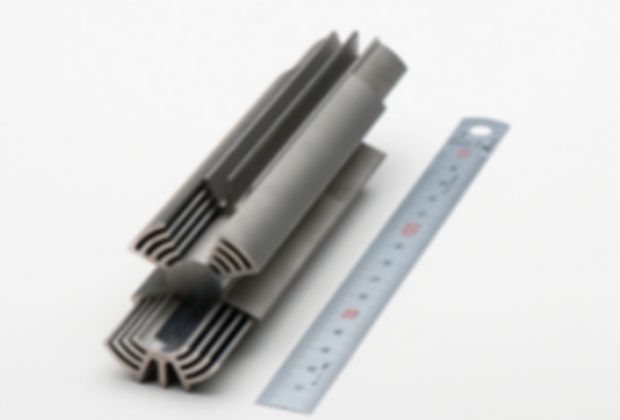

Product Name Precision mold
Industry WEDM
Size Φ 40x150
Precision ± 0.005

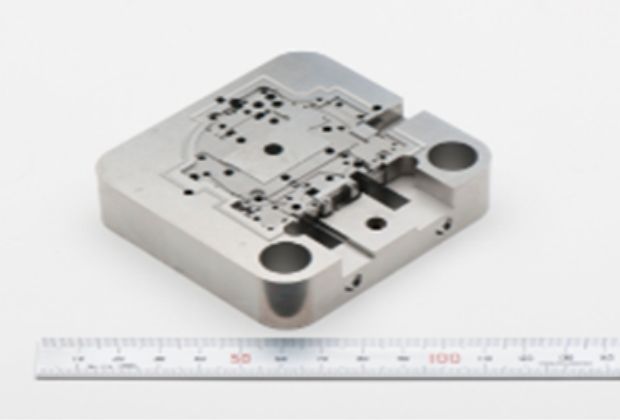

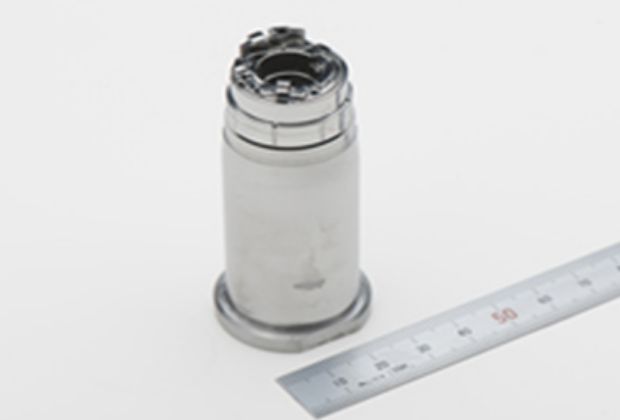

Product Name Precision molds insert
Industry Lathe / Grinding / EDM / Milling
Size Φ 30x80
Precision ± 0.005

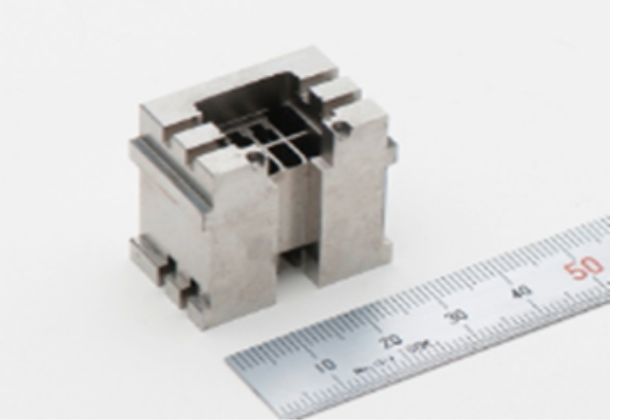

Product Name Precision molds insert
Industry EDM
Size 15x15x20
Precision ± 0.005

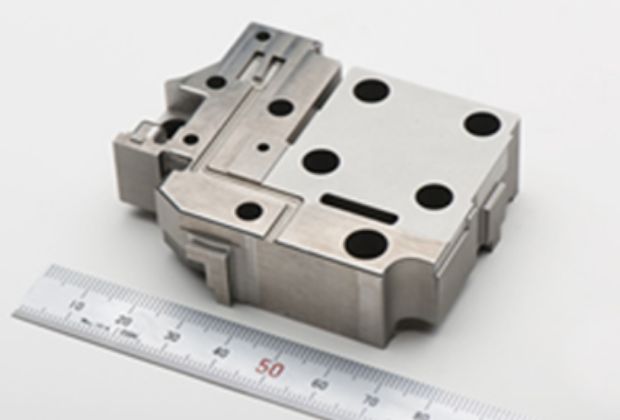

Product Name Precision molds insert
Industry EDM
Size 60x80x30
Precision ± 0.002

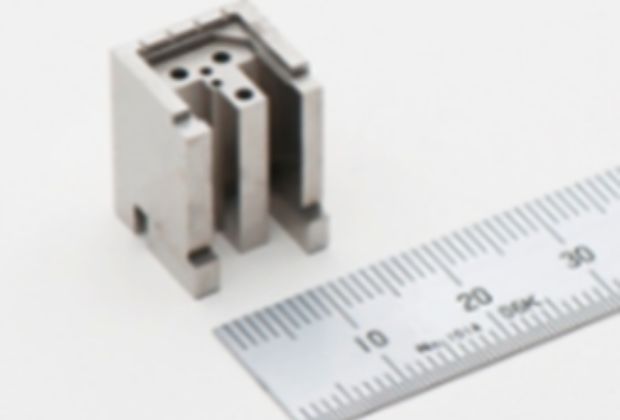

Product Name Precision molds insert
Industry EDM / WEDM
Size 30x25x30
Precision ± 0.001
Product Name Precision molds insert
Industry Milling / EDM / WEDM
Size 50x50x50
Precision ± 0.01

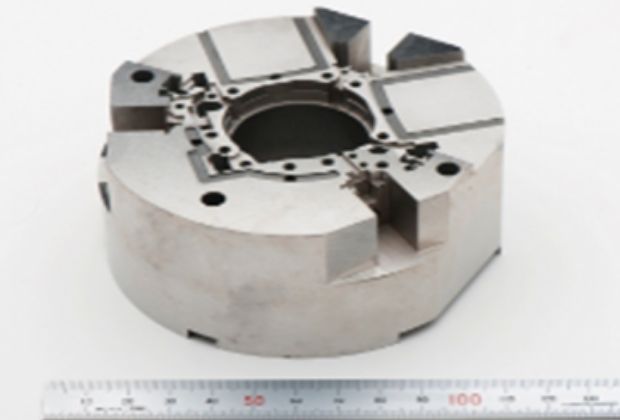

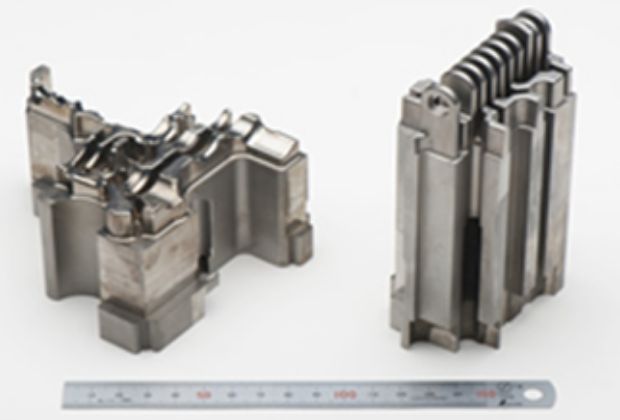

Product Name Precision molds insert
Industry Milling / EDM / WEDM
Size 60x60x40
Precision ± 0.002
